Aluminum Corrugated Panels Nacd-3d Corrugated Metal Panels for Interior Walls

Advantages

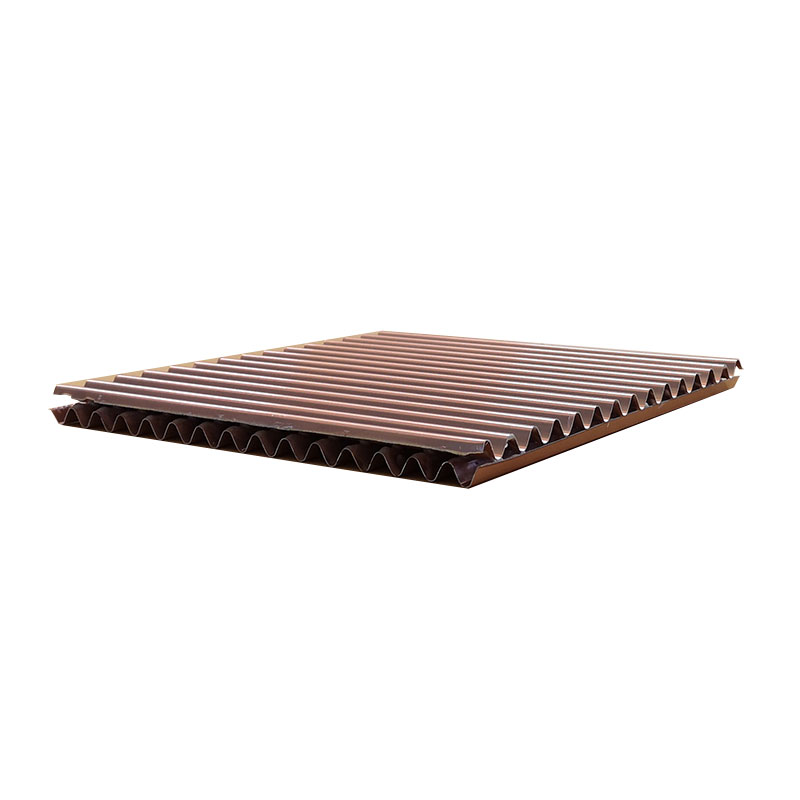

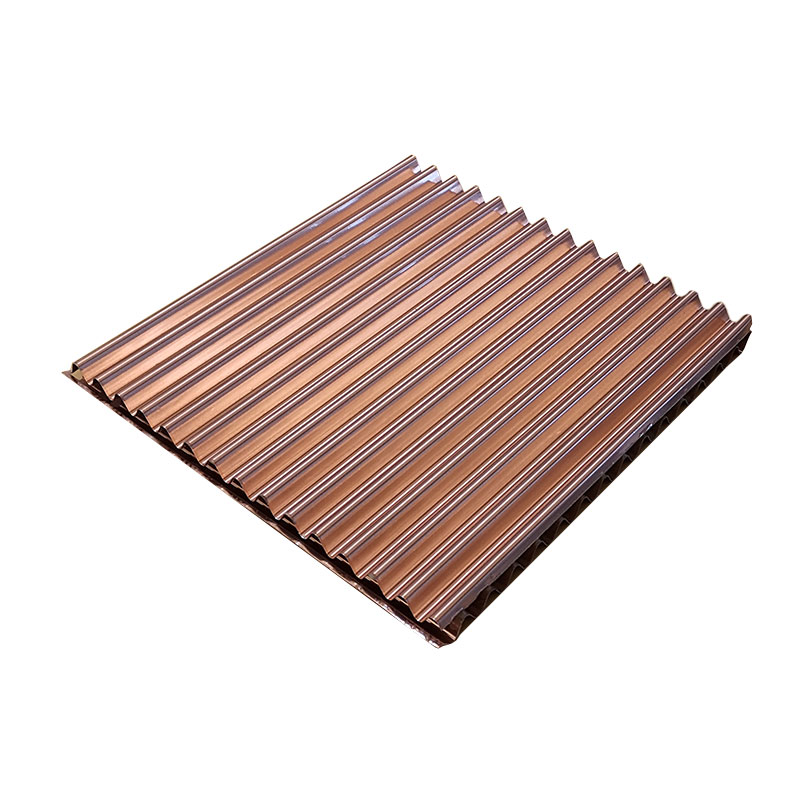

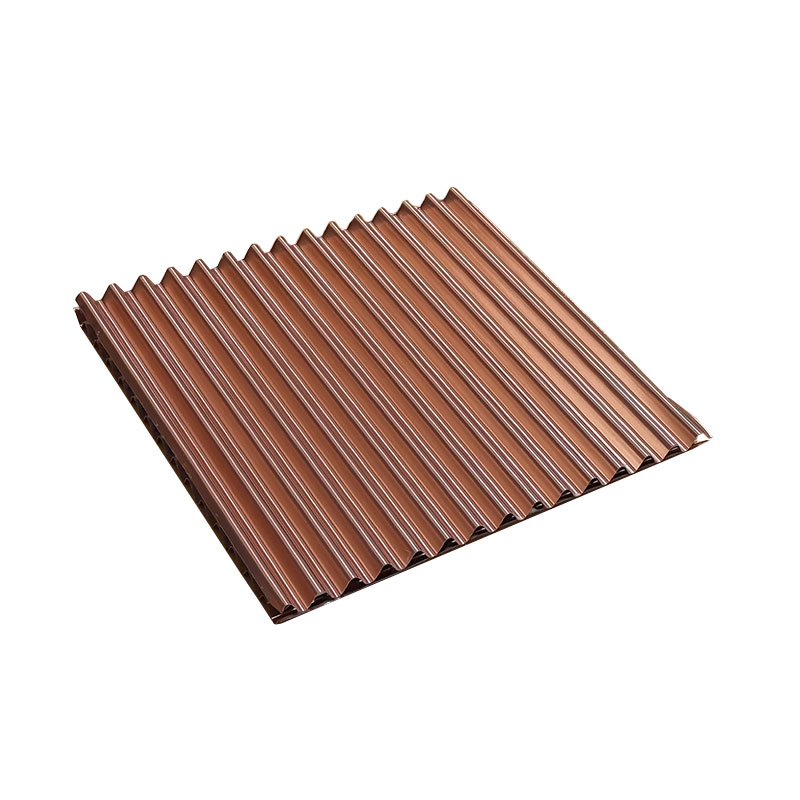

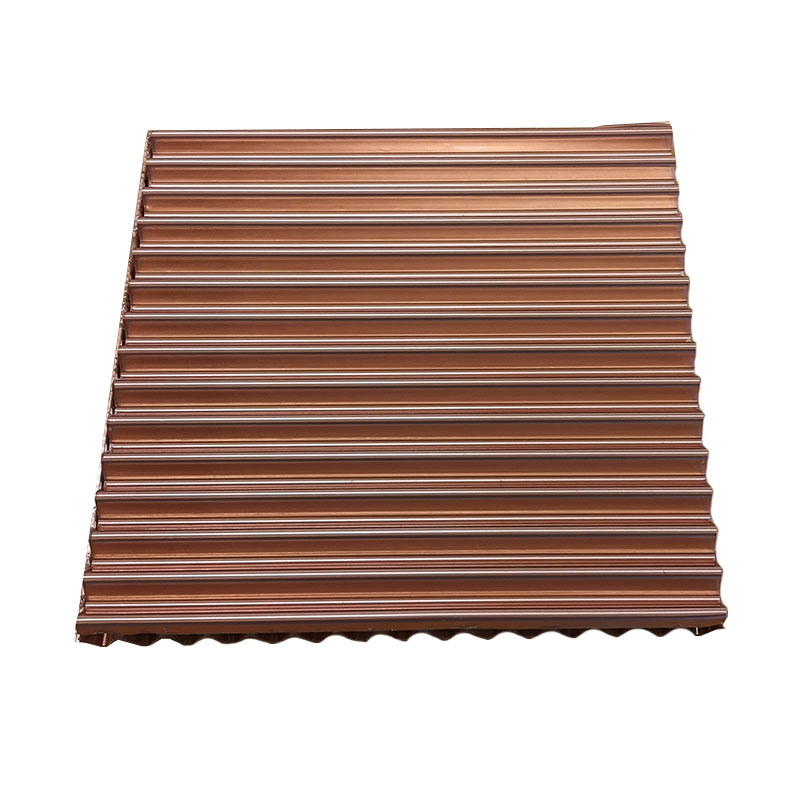

A 3D stacking corrugated board (shortened for “3D SCB” as below) is consist of two pieces of original color/ colored thin aluminum corrugated sheets that are posed at certain angles (e.g. orthogonal) and laminated in vertical dimension. The thickness of 3D SCB ranges from 12-26 mm. Its 3D structure is mainly applied for bearing big force. 3D SCB is also applied for interior core frame in object so that its supporting force-loading face can bear greater load. The composite with 3D SCB core actually has much higher compression and bending strength than those without it.

Parameters

Maximum size	L 1200mm * W 1200mm
Height of corrugated teeth	5mm，10mm, 15mm, 20mm
Thickness of corrugated sheet material	0.4mm
Color	Colored/original color
Materials	Aluminum plain board/1060H24

Descriptions

Apply original color (metallic silver) or colored (rose golden) thin aluminum board to make corrugated sheet.

The height and density of corrugated teeth can be customerized. Size of 3D SCB can be confirmed according to customers’ requirements.

3D SCB is generally applied for the core supporting. It can be fix on surface/inner metallic sheets by rivets to make a sandwich composite. If 3D SCB is used separately, it is necessary to equip frame with it (some metallic connecting grooves needs extra fee).

According to different application scenes, urethane resin or epoxy resin are possible to be applied for binding 3D SCB and surface/inner ply of a sandwich composite as adhesive.

Characteristics

Except the characteristics of metallic corrugated sheet and two-ply corrugated board, 3D SCB has some outstanding advantages as followings

Good mechanical properties
3D SCB can bear load from different directions simultaneously and keep the dimension intact (no deformation). Comparing to two-ply and three-ply corrugated board, 3D SCB can save more materials and reach higher performance level in mechanical properties (e.g. compression and bending strength).

Anti-seismic
3D SCB has the anti-seismic property of two-ply corrugated board. When shaking force is exerted on the surface of 3D SCB, the shaking energy will transmit along two directions (usually orthogonal directions) and is divided by two parts on the two directions. The two part of shaking energy will be continuously divided into each corrugated tooth in each corrugated ply of 3D SCB. After double reduction in vibration strength, 3D SCB hardly damage in the shaking process.

Heat conductivity and insulation
3D SCB has double effects of the heat conductivity and insulation performance of two-ply corrugated board.

Fireproofing and dampproof
All materials in 3D SCB are nonflammable to avoid any fire accidents. It is suitable for the public areas of high people density. Owing to the 3D structure, 3D SCB has much higher fireproofing degree and dampproof performance index.

Applications

Heat dissipation and conductivity cushion (pad), goods’ package, metallic roof (heat insulation layer), floor (underfloor warmer module), interior separation wall, wall panels of truck’ carriage and container, crash barrier (vehicle bumper), furniture’s parts (e.g. decoration panel).
